Unit Accessories

• Compact Design
• Straight-Line Measurement Mechanism
• Suitable for the Open Hole and Cased Hole operation

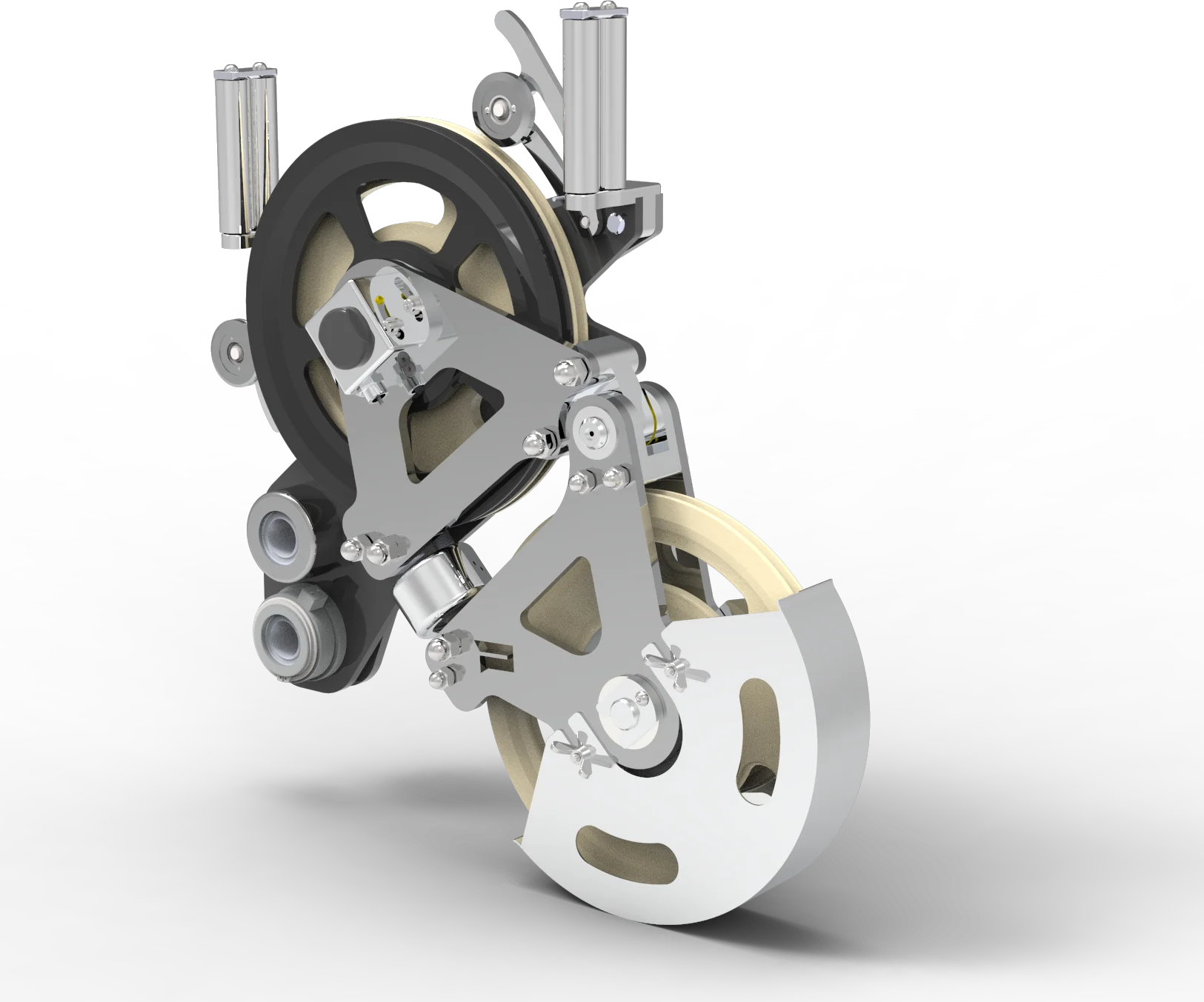

• Triple Wheel Mechanism with the Integrated Digital Load-Sensing Device
• Live Line Installation Capability
• High-Grade Aluminium-Alloy Main Body Structure
• Military-Grade, Heavy-Duty Optical Encoder
• Sliding-Type and Overhead Spooling System Compatible
• Variable mounting bracket compatibility
• Easy to Maintain
• Compatible with WinchPilot™ System
• ATEX Certified Version
• Calibration certificate documents
• Max Line Load Capacity 8900 Lb.
• Max Line Speed 1800 fpm
• Cable Line Size 7 /32″ to 15/32″
• Operation Temp. 0-70°C

• Suitable for SlickLine and Braided line units
• The optimized angle of contact for slippage-free measurement
• Maximizing Wire/Cable Lifetime with Engineered Triple Wheel Design
• Accurate Depth/Tension Measurement according to Norsok Standard
• High-Strength Structure for Heavy-Duty Operation
• High-Grade Aluminium-Alloy Main Body Structure
• Military-Grade, Heavy-Duty Optical Encoder
• Sliding-Type Spooling System
• Compatible with WinchPilot™ System
• Innovated Dual-Range Hydraulic Load Cell
• The Dual Load Sensing System
• The Triple Depth Measurement System
• Wire Line Size 0.082″ Wire to 0.250″ Cable
• IP 67 Rating
• Operation Temp.: 0-70° C

• Oil Field Grade Components and Materials
• 100 % Transparent Fluid-Filled
• Zero Point Adjustable
• Shock Damper Diaphragm
• Bleed-Off Port and Valve
• Imperial / Metric Measuring Units
• O-Ring Sealing System
• High-Strength Structure for Heavy-Duty Operation
• High-Grade Aluminum Alloy Main Body Structure
• Variable Mounting Bracket Compatibility
• Demountable Parts for Ease of Maintenance
• Compatible with WinchPilot™ System

• Panel Mount
• Mechanical High-Speed Gearbox
• Accurate Measuring System
• Independent from All Power Sources
• Heavy-Duty, Easy to Replace the Counter Cable
• Imperial (Standard) or Metric (Optional) Versions are available
• Compatible with PROBUS-MB Counter Gearboxes
• Variable Mounting Bracket Compatibility


Easy Gauge is a reliable solution for Measuring Depth, tension, and speed. The measured values are displayed on its LCD, and they are also accessible through the MODBUS interface. This device also contains four outputs that can be used as either ON/OFF control signals or alarm signals.

General Features:

• LCD with large characters and backlight
• 4 Push Buttons
• User-Friendly Menu
• Stable tension reading in a noisy industrial environment
• Indicating minimal and maximal values for Depth, Tension, Speed, and Acceleration

• Mechanical High-Speed Gearbox
• Accurate Measuring System
• Independent from All Power Sources
• Heavy-Duty, Easy to Replace the Counter Cable
• Imperial (Standard) or Metric (Optional) Versions are available
• Compatible with PROBUS Mechanical Backup Depth
• Variable Mounting Bracket Compatibility


• Double Output for Two Different Wire Sizes with a Single Measuring Wheel
• Heavy-Duty High-Speed Gearbox
• Accurate Measuring System
• Independent from All Power Sources
• Easy to Switch the Counter Cable
• Imperial (Standard) or Metric (Optional) Versions are available
• Compatible with PROBUS Measuring Devices
