Pressure Control Equipment (PCE)

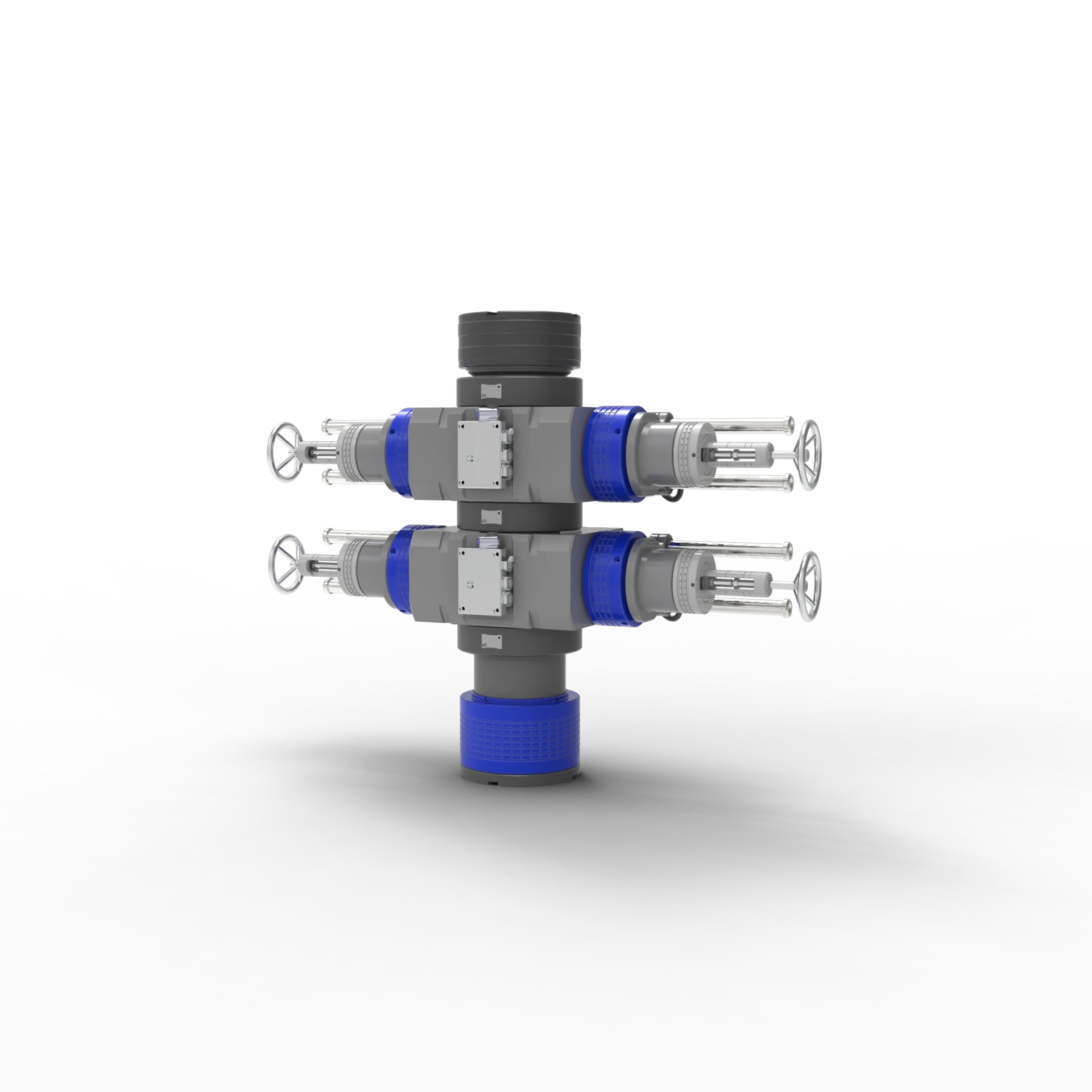

• Replaceable cartridge-type equalizing valves
• Compact & Modular design, allowing shorter rig-up heights
• Quick-coupled hydraulic cylinders, allowing fast removal of the cylinder & Rams seal replacement
• Keyless ram bores
• Operation temp: -25 to +118°C
• Patented X-Type Ram Design for maximum Wire/Cable safety
• Stackable up to Quad stages
• In compliance with API 6A/API 16A / NACE MR 0175/ISO 1561-2

Available in a variety of configurations to meet your specific requirements:

• Sizes: 2.50", 3.00", 4.00", 4.50", 5.00", 5.50", 6.38"
• Working Pressures: 5,000 psi, 10,000 psi, 15,000 psi
• Connections: Otis, Bowen, ACME double start, and non-standard
• Service: Standard, H2S

• Suitable for Wireline and Coiled Tubing Operation
• Available on all standard and non-standard connections
• Super Alloy inlay Grooves available on request

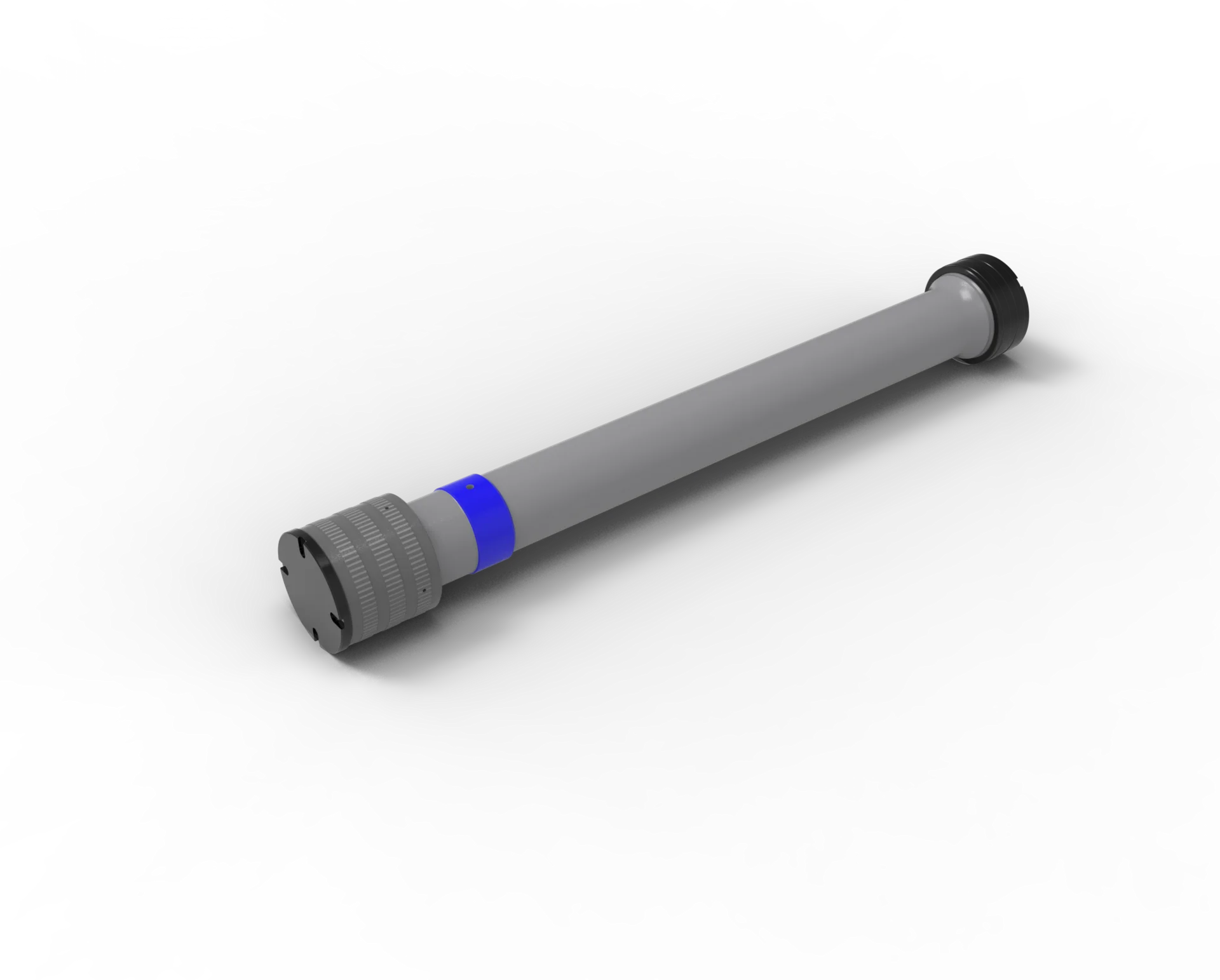

• Solid single-piece body and connections
• Without a welded and threaded joint
• Available with pump-in/bleed-off ports
• Variety of lengths and connections
• Lightweight version available
• Service temperature range: -25 to +118 °C.
• In compliance with API 6A/API 16A / NACE MR 0175/ISO 1561-2

Available in Lightweight, Quick, and Integral Union configurations, and in a variety of options to meet your specific needs:

• Sizes: 2.50", 3.00", 4.00", 4.50", 5.00", 5.50", 6.00", 6.38", 6.50"
• Length: 4ft., 6ft., 8ft., 10ft.
• Working Pressures: 5,000 psi, 10,000 psi, 15,000 psi
• Connections: Otis, Bowen, ACME double start, and non-standard
• Service: Standard, H2S

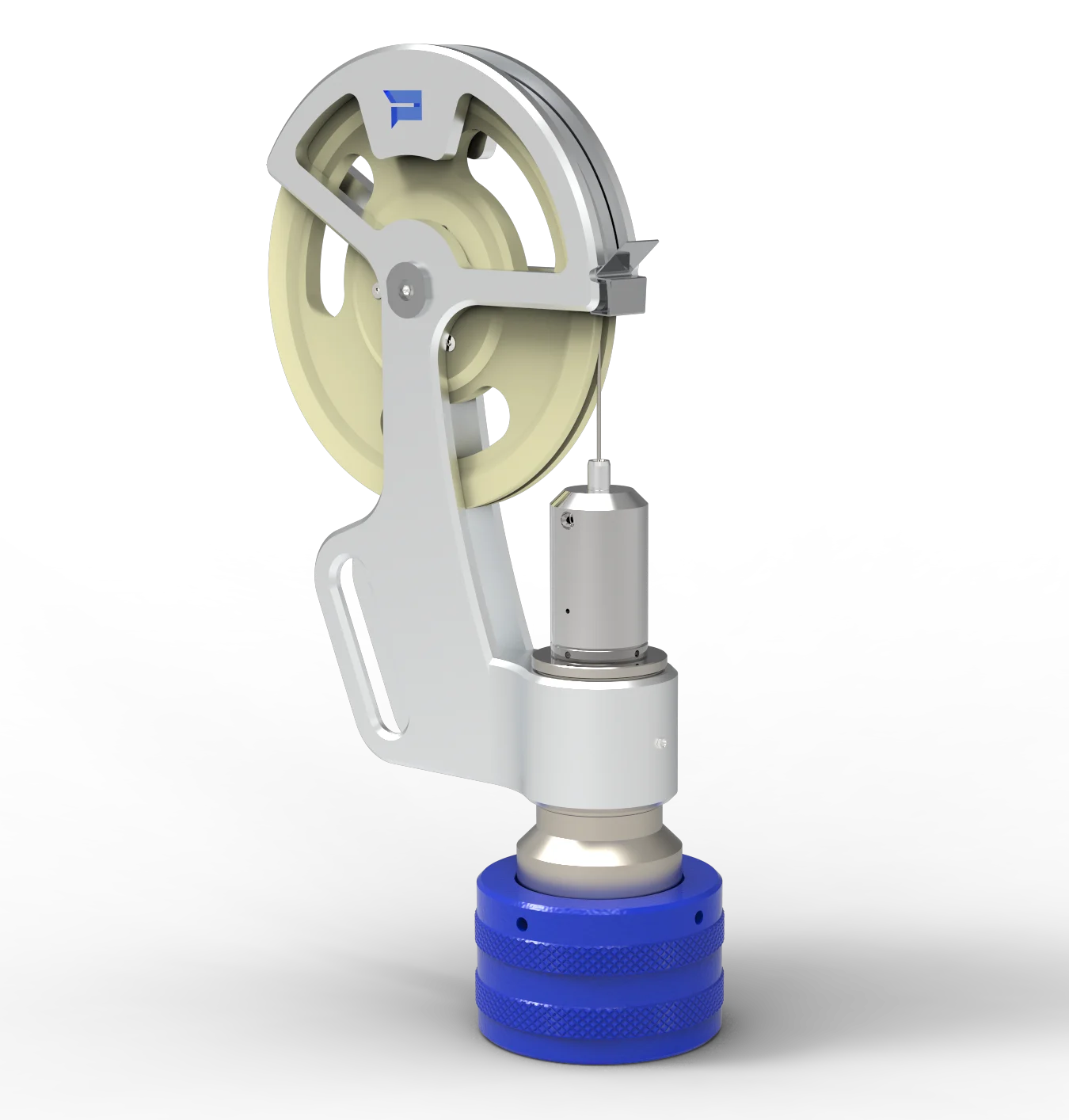

• Sliding-type side cover – Super safe wire jumping protection
• Variable mounting bracket compatibility
• Compact and simple to operate
• Operation temp: -25 to +118°C.
• In compliance with API 6A/API 16A / NACE MR 0175/ISO 1561-2

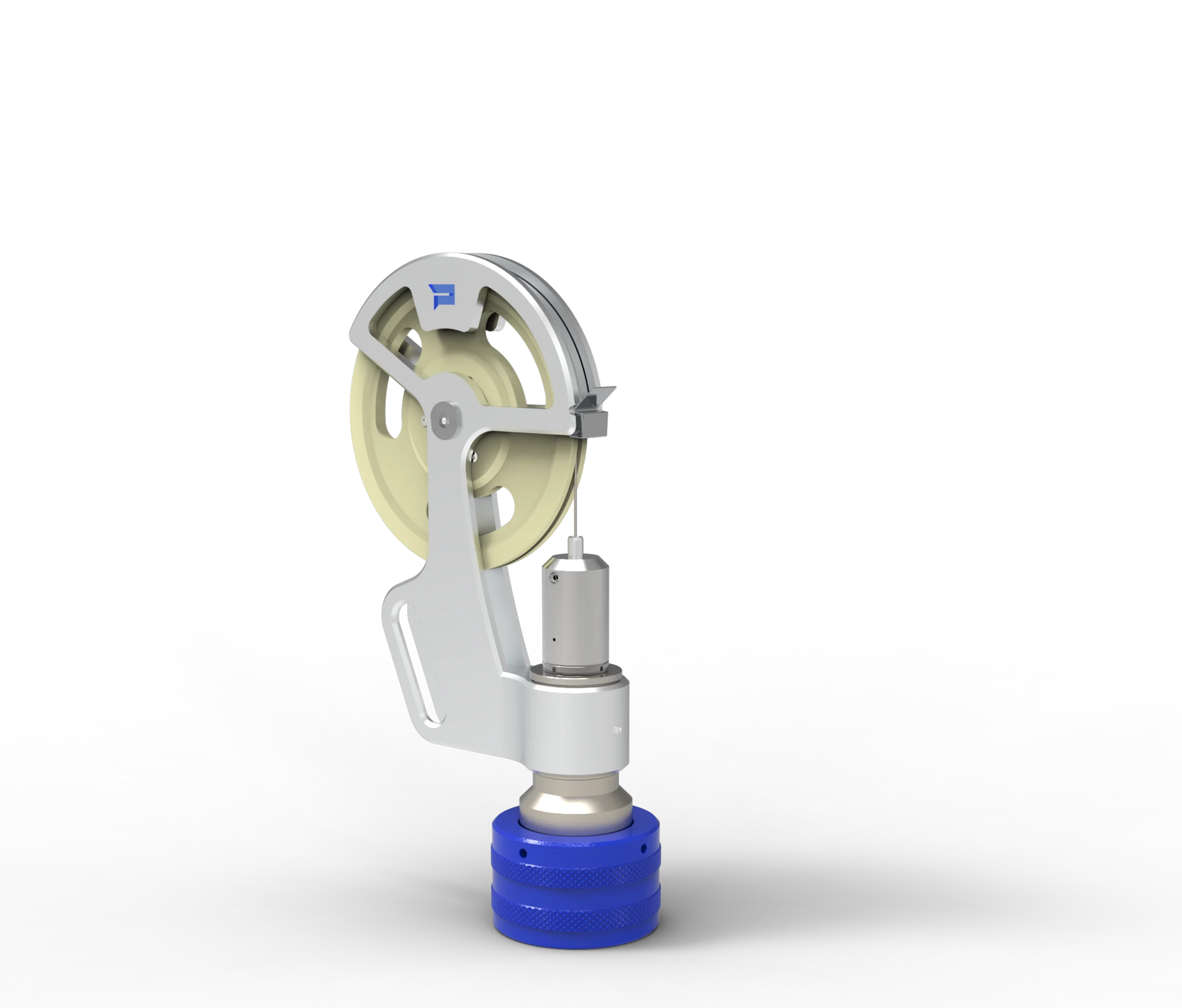

Available in Lightweight and Free Load configurations, and in a variety of options to suit your needs:

• Sheave Diameters: 16.00", 20.00"
• Working Pressures: 5,000 psi, 10,000 psi, 15,000 psi
• Connections: Otis, Bowen, ACME double start, and non-standard
• Service: Standard, H2S

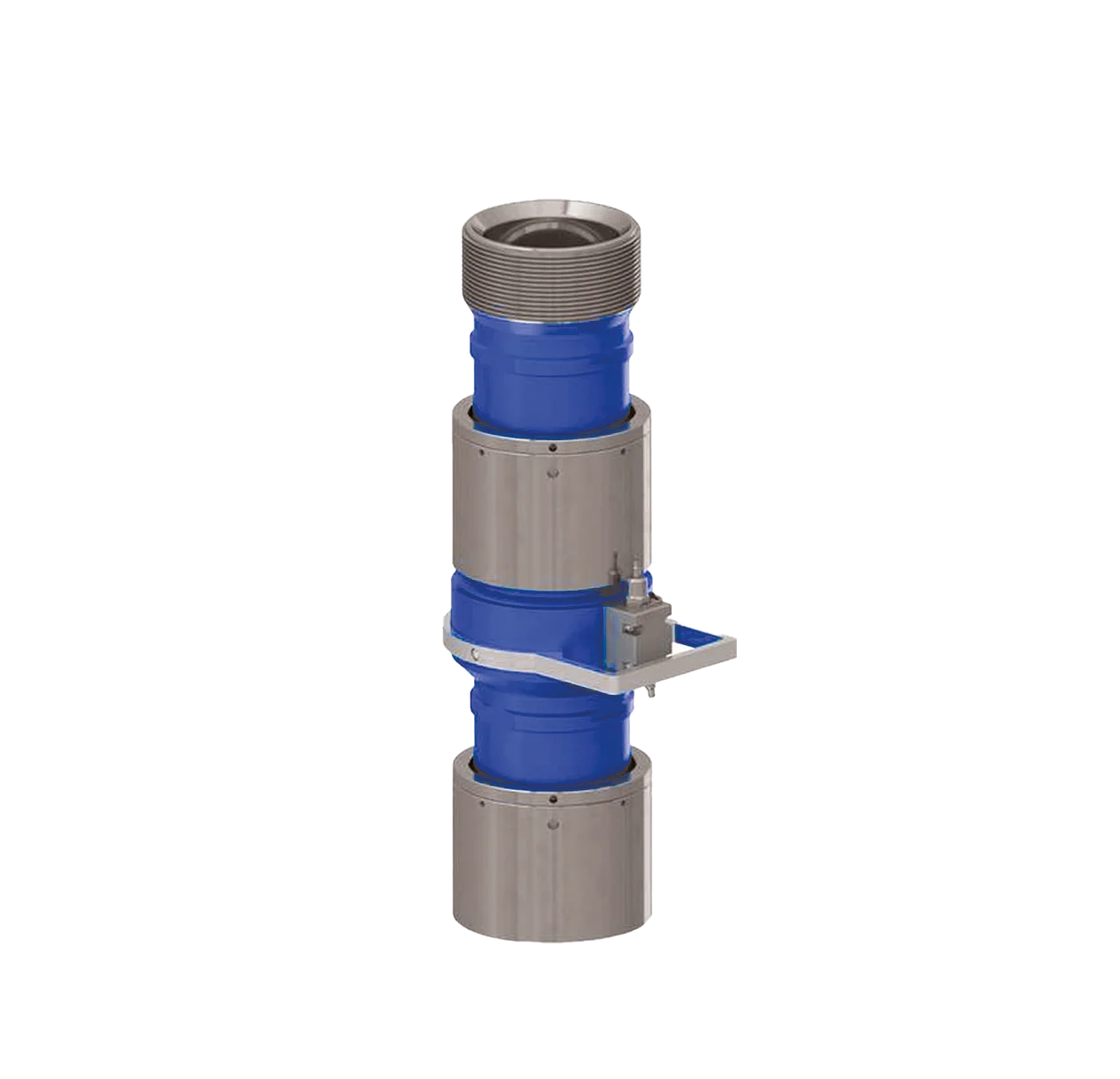

The PROBUS Quick Test Sub significantly reduces rig time during pressure testing of your Wireline or coiled tubing pressure control equipment string, especially when multiple runs are required.

Available in a Variety of Configurations:

• Sizes: 2.50", 3.00", 4.00", 5.12", 6.38"
• Working Pressures: 5,000 psi, 10,000 psi, 15,000 psi
• Connections: Otis, Bowen, ACME double start, and non-standard
• Service: H2S

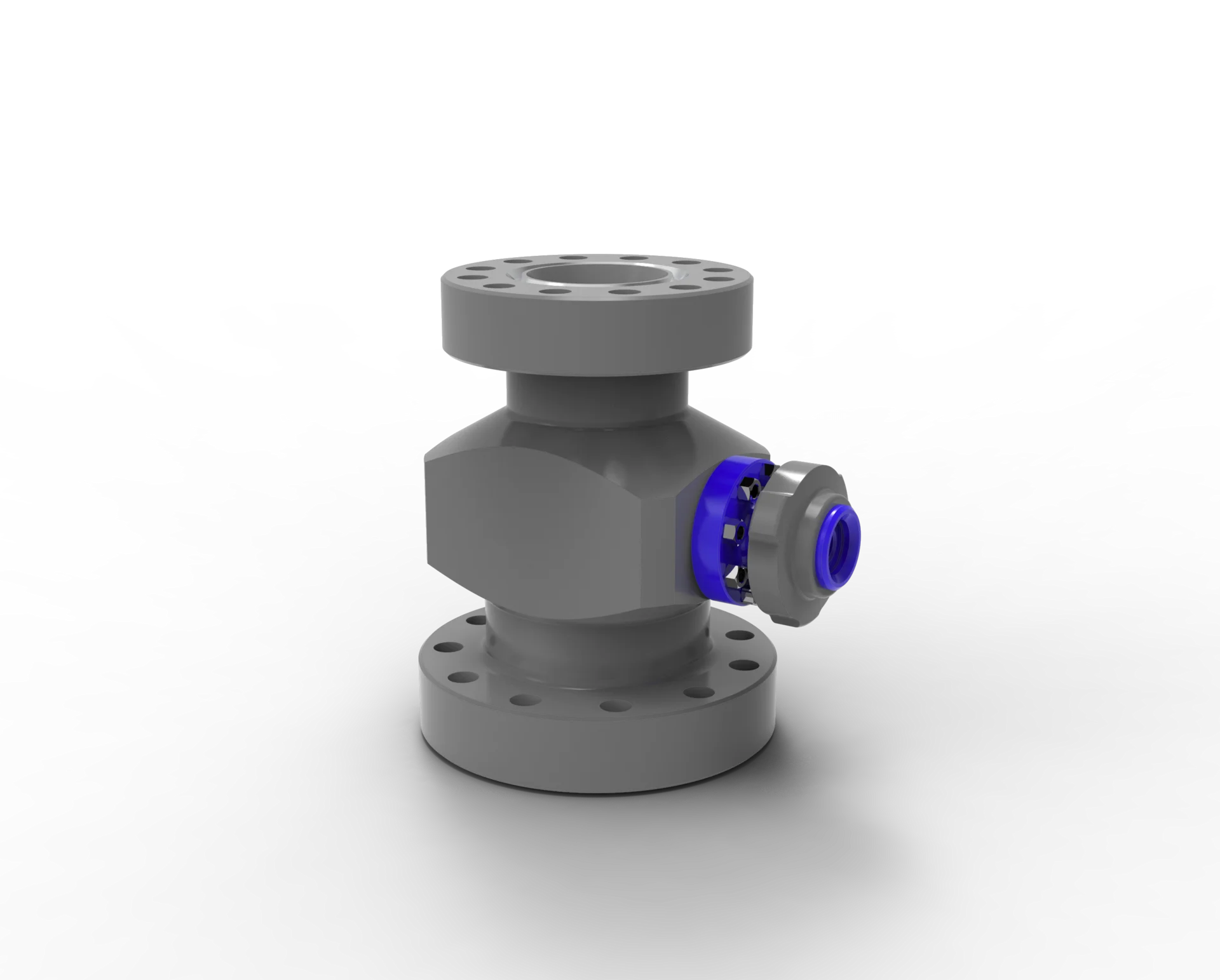

The PROBUS Pump-In Sub is a critical component that maintains well control during Wireline operations. It injects fluids into the Wellbore even when the Wireline BOP is closed, ensuring continued well pressure management.

Available in a Range of Configurations to Meet Your Needs:

• Sizes: 2.50", 3.00", 4.00", 4.50", 5.12", 6.38"
• Working Pressures: 5,000 psi, 10,000 psi, 15,000 psi
• Connections: Otis, Bowen, ACME double start, and non-standard
• Service: Standard, H2S

The PROBUS Grease Injection Head ensures a reliable seal when using braided lines for demanding operations, such as swabbing or fishing under pressure.
Positioned at the top of the Lubricator stack, it facilitates well intervention while maintaining well pressure control.

This essential tool is available in a variety of configurations to match your specific needs:

• Cable Size: 7/32" ~ 15/16"
• Working Pressures: 5,000 psi, 10,000 psi, 15,000 psi
• Connections: Otis, Bowen, ACME double start, and non-standard
• Service: H₂S

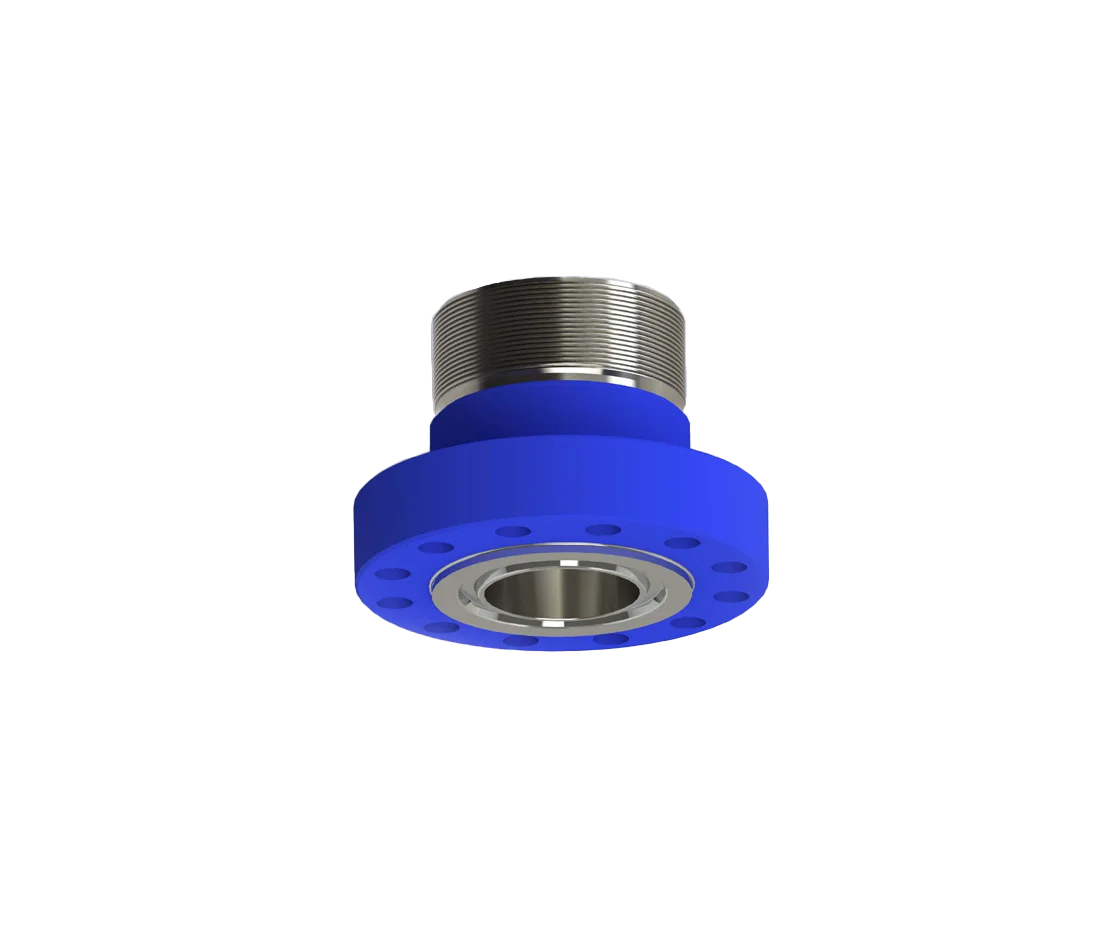

The PROBUS Wellhead Adapter Flange establishes a secure and reliable connection between the wellhead and surface pressure control equipment during well intervention operations.

Available in a Range of Configurations:

• Sizes: 1-13/16", 2-1/16", 2-9/16", 3-1/16", 3-1/8", 4-1/16", 5-1/8", 7-1/16", 9.00", 11.00", 13-5/8", 16-3/4",
• 18-3/4", 20-3/4", 21-1/4", 26-3/4", 30.00"
• Working Pressures: 5,000 psi, 10,000 psi, 15,000 psi
• Connections: Otis, Bowen, ACME double start, and non-standard
• Service: Standard, H2S

The PROBUS Tool Trap safeguards against accidental Downhole tool loss. It prevents Wireline tools from falling back into the Wellbore if the Wireline breaks at the rope socket during retrieval into the lubricator.

A Range of Configurations to Meet Your Needs:

• Types: Manual, Hydraulic
• Sizes: 2.50", 3.00", 4.00", 5.00", 6.38"
• Working Pressures: 5,000 psi, 10,000 psi, 15,000 psi
• Connections: Otis, Bowen, ACME double start, and non-standard
• Service: Standard, H2S

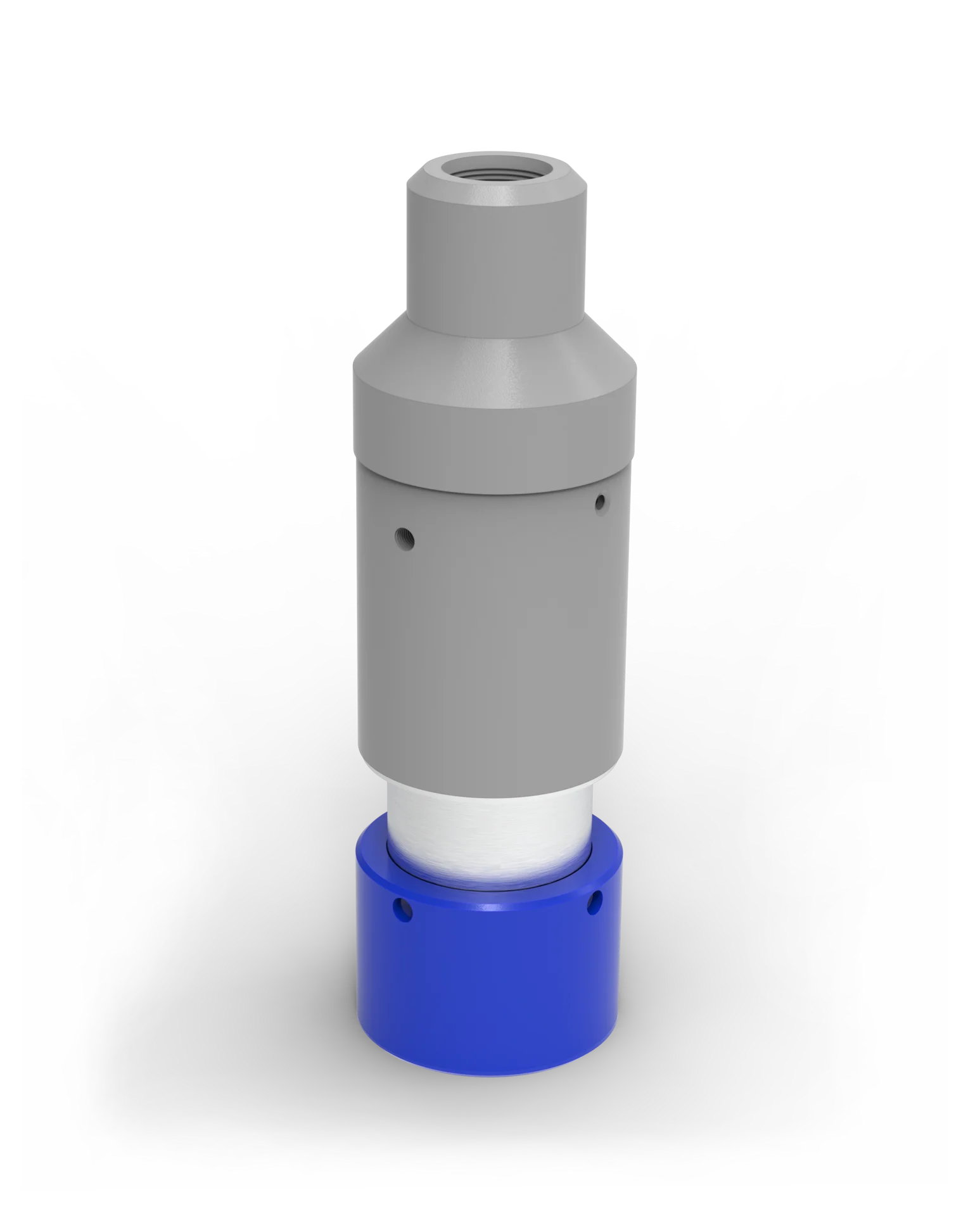

The PROBUS Tool Catcher provides a fail-safe solution to prevent accidental tool loss Downhole.

The Tool Catcher remains in the engaged position by default. Hydraulic pressure is only required to release the tool string, ensuring accidental disengagement is highly unlikely.

Available in a Range of Configurations:

• Fish Neck Sizes: 1.00", 1.187", 1.375", 1.750", 2.313"
• Working Pressures: 5,000 psi, 10,000 psi, 15,000 psi
• Connections: Otis, Bowen, ACME double start, and non-standard
• Service: Standard, H2S

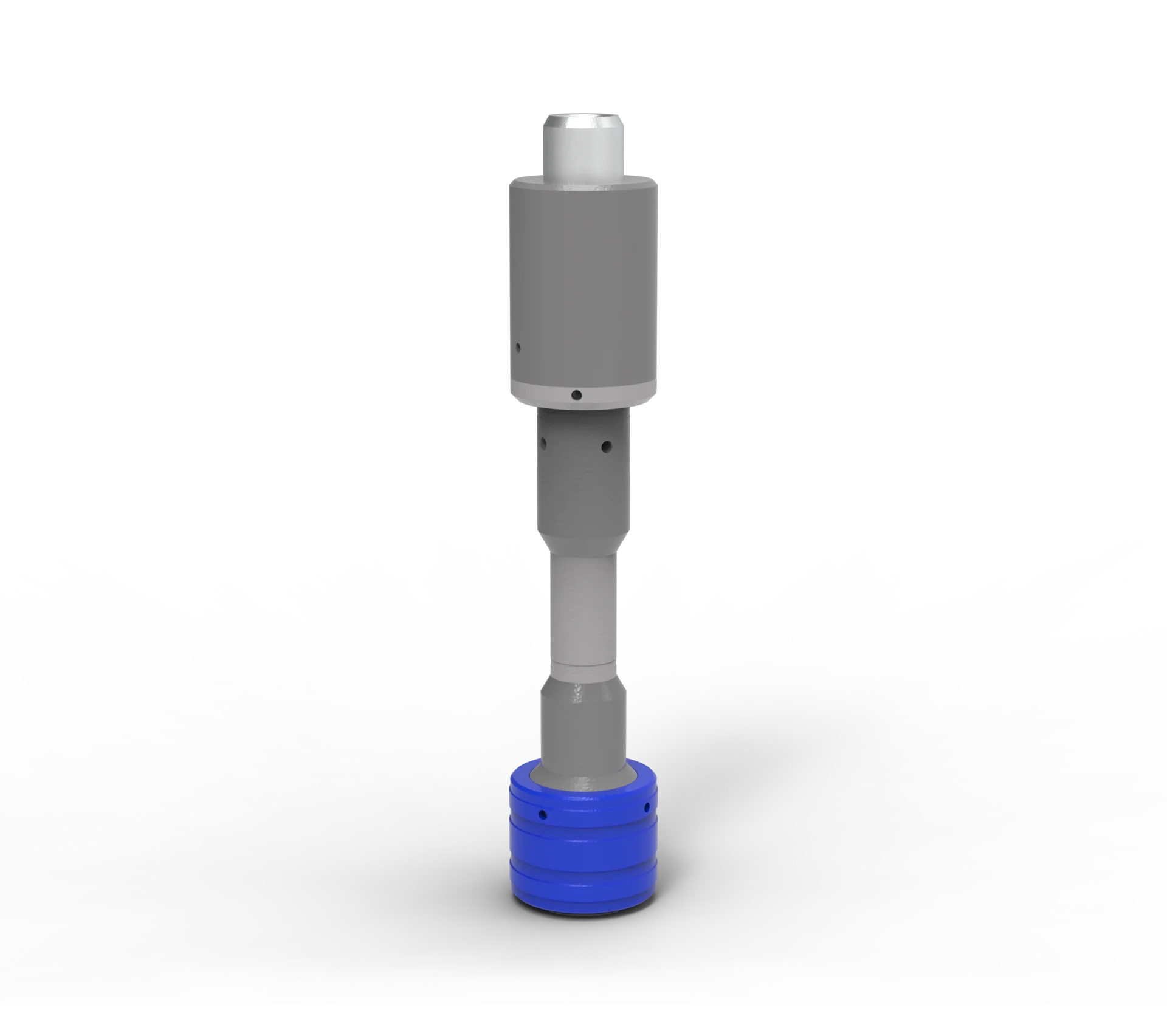

PROBUS Pack-Off provides a reliable seal around moving Wireline under pressure.

The Pack-Off is available in a variety of configurations to suit your needs:

• Types: Single, Dual
• Working Pressures: 5,000 psi, 10,000 psi, 15,000 psi
• Connections: Otis, Bowen, ACME double start, and non-standard
• Service: H₂S

The PROBUS Bleed-Off Sub is applicable when required ports on the lubricator string need to equalise or relieve pressure from a system. It is most effective when used in conjunction with a Lightweight Lubricator.

The PROBUS Chemical Injection Sub ensures controlled application of inhibitors, chemicals, and de-icing agents directly onto the Wireline. Positioned below the stuffing box or grease injection control head, it utilizes replaceable felt packing to coat the Wireline and prevent chemical migration Downhole.

Available in a Range of Configurations:

• Working Pressures: 5,000 psi, 10,000 psi, 15,000 psi
• Connections: Otis, Bowen, ACME double start, and non-standard
• Service: H2S

The PROBUS PCE Crossover is a precision-engineered component designed to seamlessly connect pressure control equipment or link pressure control systems to wellheads. Built to accommodate various sizes, pressure ratings, and connection types (such as flanges or threads), it ensures reliable integration and performance in demanding oil and gas environments, including those with H2S conditions, while meeting the highest industry standards.

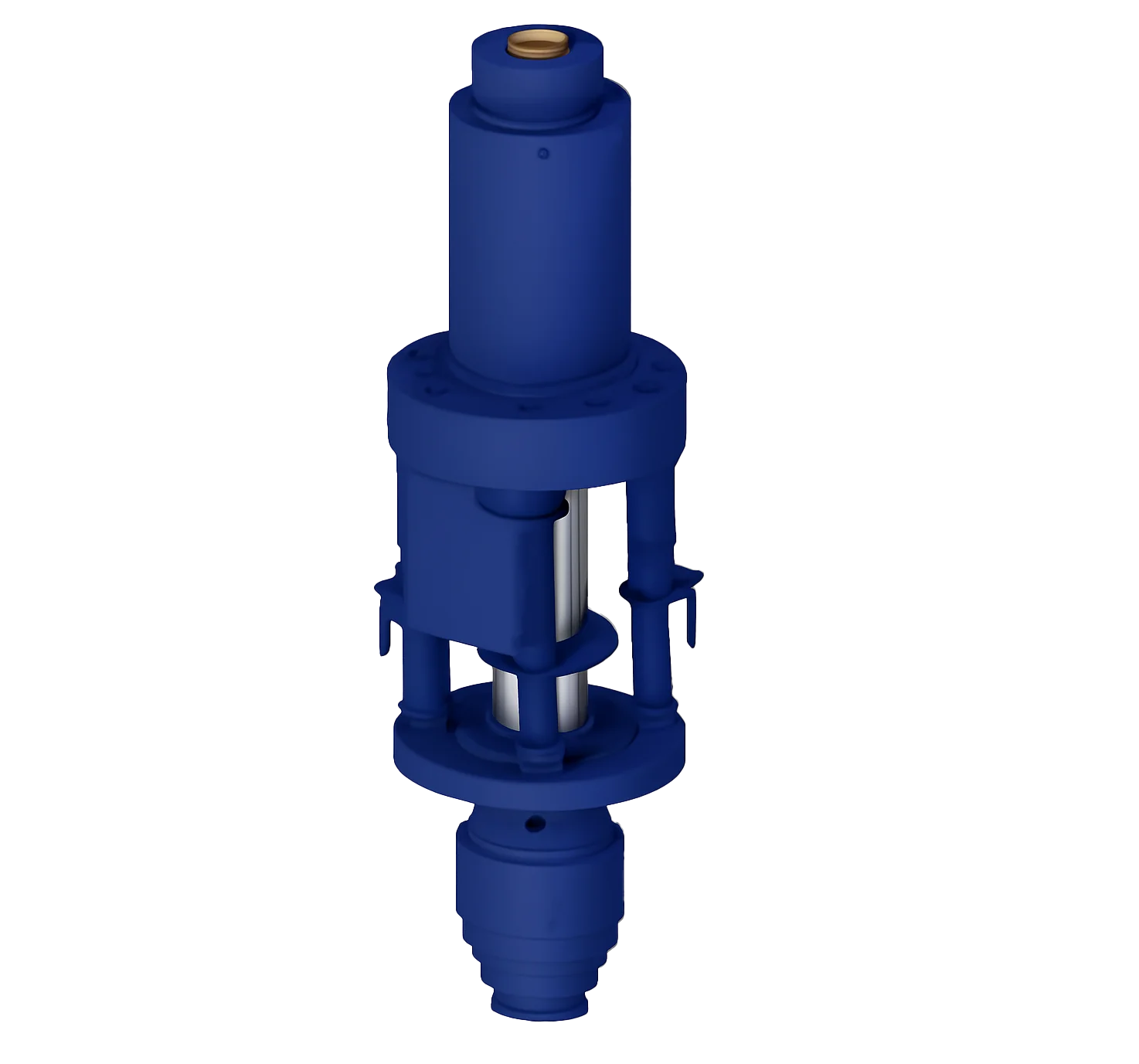

The PROBUS stripper packer is designed to provide a pressure seal around the tube when it is being run into or pulled out of a live well. Hydraulic pressure controlled by the operator activates the sealing mechanism.

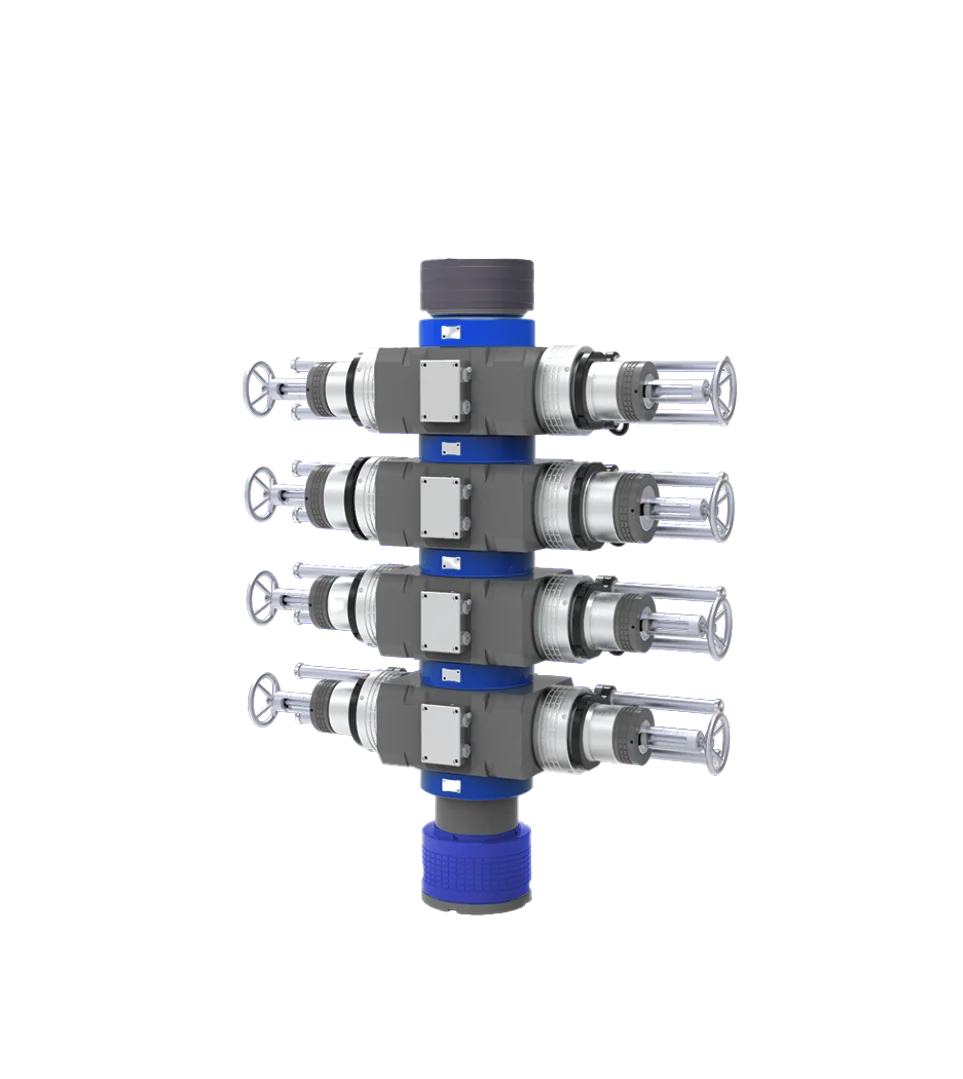

The PROBUS Coiled Tubing Blowout Preventer (BOP) provides secondary and tertiary barriers to back up the primary barrier system. The BOP is used to secure the coiled tubing and isolate the wellbore pressure during normal operations and emergencies.
