Auxiliary Equipment
PROBUS produces various auxiliary Equipment for Slickline, Wireline, and Coiled Tubing Operations, including:
- Wireline Mast
- Wire / Cable Spooler
- Wire / Cable Capstan
- Coiled Tubing Spooler
- Coiled Tubing Snubbing Unit

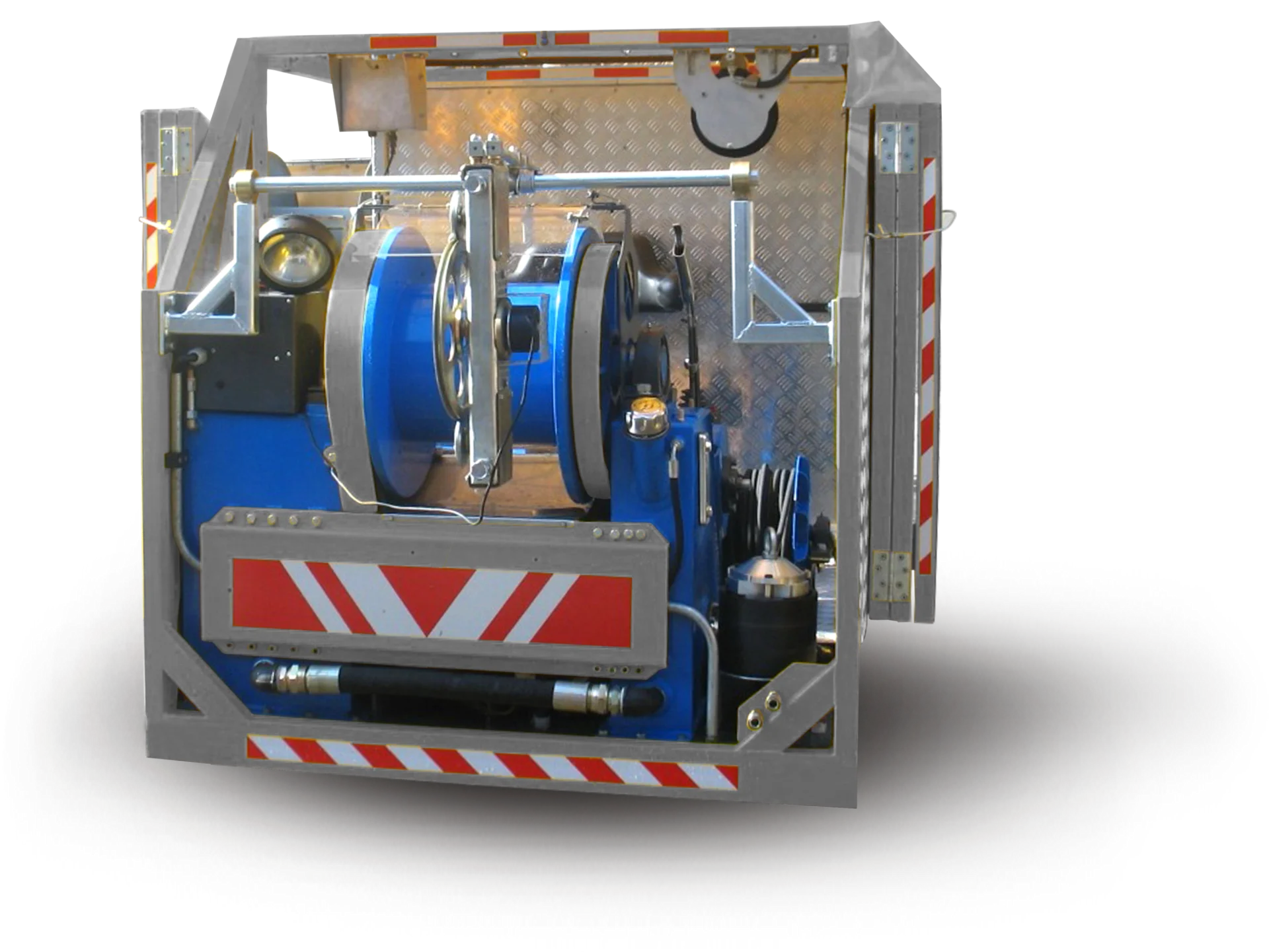

Wire / Cable Spooler
PREEL-WL2000
- Integrated Electro-Mechanical System
- WinchPilot™ Compatible
- High Strength Chassis
- Electric-Powered Prime Mover
- Adaptable to a wide range of transport drums
- Wide and stepless working range
- Compatible with standard steel / wooden storage drums
- Multi-Line Tensioner Drum
- Suitable for spooling / re-spooling / performance testing/training jobs
- User-friendly working method with over-tension protection
- Hydraulically Controlled Brake Mechanism
- Natural Aspiration Cooling System
- Max environment temperature 63° C
- Demountable parts for ease of maintenance
- Stainless Steel Control Panel
- Compact Design
- Environment-Friendly Drain Pan
- Aligner Roller Guides
- Forklift ready
- Crane Hook ready
- Suitable for bolting on a rigid platform

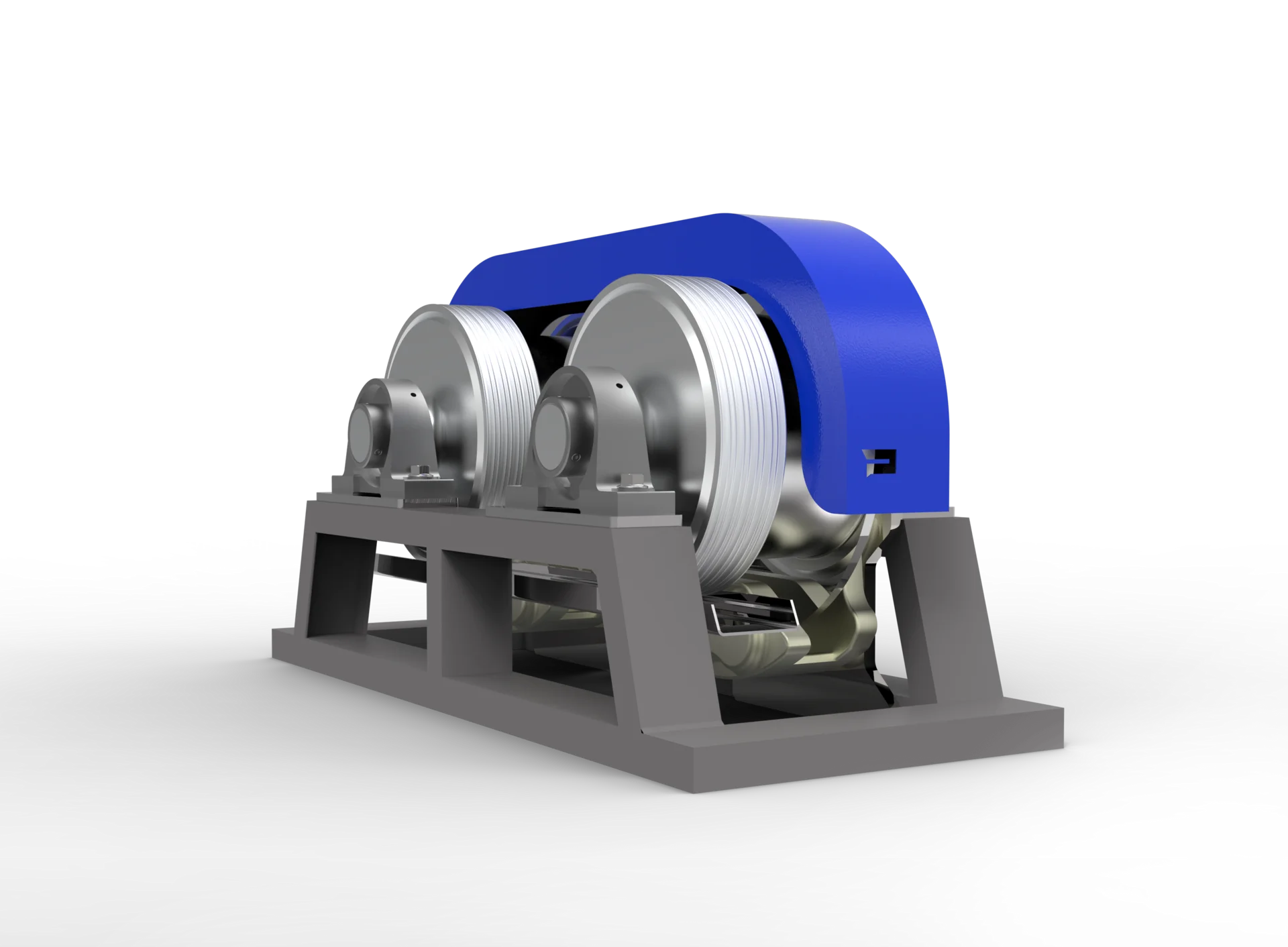

Stationary Tensioning Device for Wire/ Cable Spooling
PCAP-2000
- Robust Solution for Spooling SlickLine & Wireline Cables
- Bolt-Down, High-Strength Chassis
- Multi-Line Tensioner Drum
- Pneumatically Controlled Brake Mechanism
- Demountable Parts for Ease of Maintenance
- Environment-Friendly Drain Pan
- Aligner Roller Guides
- Forklift and Crane Hook Ready
- Controllable Line Pull: 300 – 3700 Lb
- Max Hydraulic Pressure: 1500 Psi
- SlickLine Size Range: 0.092″ To 0.160"
- BraidedLine Size Range: 3/16″ To 15/32"
- Sheave Dia: 16 – 22"
Wireline Mast Unit
PMAST-LW40
- Suitable for SlickLine and Cased Hole operation
- integrated Zone 2 Power Pack (Zone I optional)
- Heavy Duty High Strength Structure
- Flexible arm design easily adjusts for unusual access positioning
- Onshore/offshore transportable
- Up to 16M-Ton
- Guy Cable Hook ready
- Forklift and crane hook ready
- Quick and easy setup
- Auxiliary storage box for sheaves and accessories
- Primary winch capacity: 6000 lb
- Secondary winch capacity: 3000 lb
- Weight: 3493 Kg
- Cargo Dimension: L=3,000 mm | W=1,500 mm | H=2,400 mm
- Operational Dimension: L=4,000 mm | W=3,600 mm
